Electric Fence Energiser 1 Joule Starter Package

Regular price $108.00 $0.00 Unit price per
Free Delivery

Electric Fence Energiser 1 Joule Starter Package

Contents:

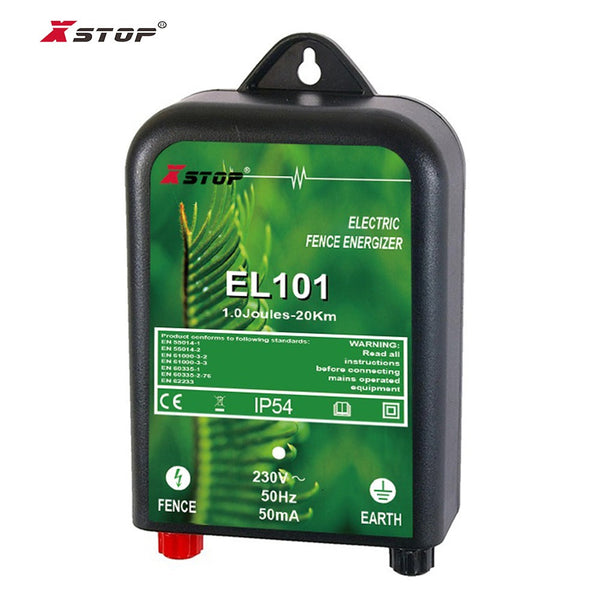

X-Stop EL101 electric fence energiser. 240V AC mains powered. It provides 1 joule output at 7.5 kV and can power up to 10km of multiwire fence (20km maximum wire length). It is small, lightweight and easy to set up, and suitable for cattle, sheep, horse and other livestock permanent and temporary fencing. It is IP54 rated weatherproof and dustproof and CE and RoHS certified.

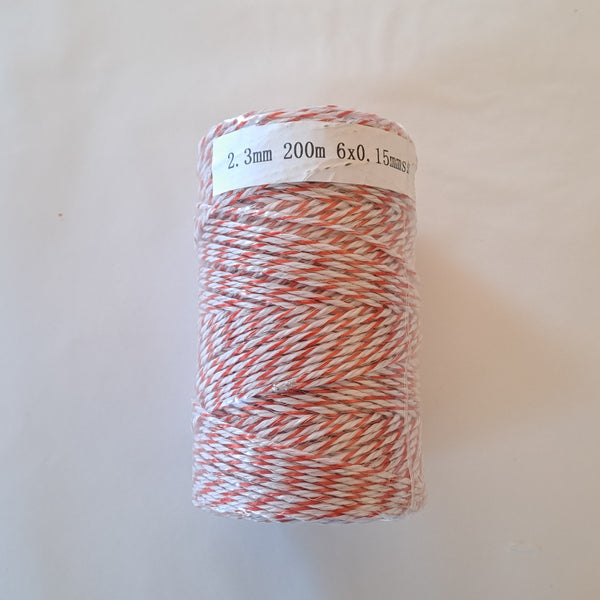

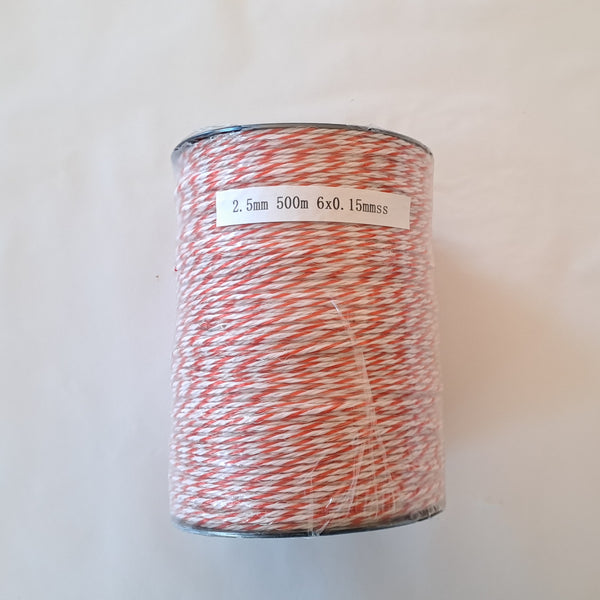

2.5mm Polywire for electric fences  2.3mm with 6 x 0.15mm stainless steel strands interwoven. 70kg breaking force. 8 Ohms resistance. Red and white in color. Option of 200 or 500 metres

Electric Fence Pinlock Insulator for Steel Posts. Standard pinlock insulators to fit standard size steel fence posts. Suitable for use with polywire. Good quality, high strength construction with locking pins attached.  Option of 25 or 50

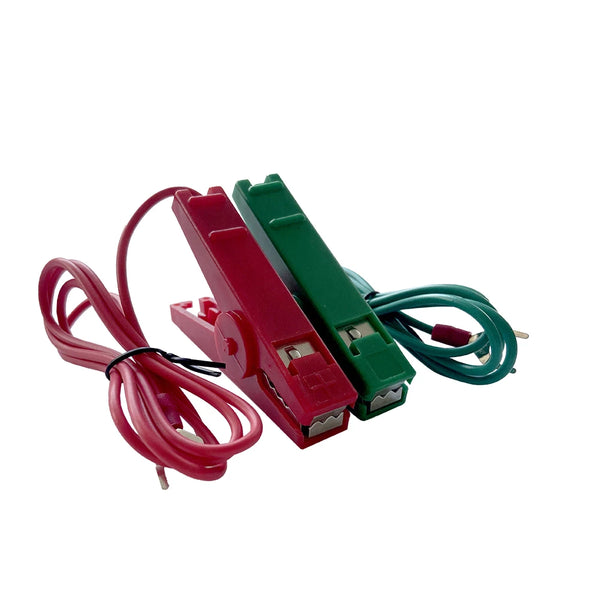

Electric Fence connection leads. Red and Green Alligator clips with Universal M8 ring terminals on UL 18AWG 1m long cables.. Rust-free and long-lasting stainless steel clips.  Serrated teeth will strongly grip wire, polywire, or tape.

Standard Package contents:
1 x EL101 240V fence energiser
200m 2.5mm poly wire
25 Steel post pinlock insulators
Fence connection lead set (fence & earth)

Large Package contents:
1 x EL101 240V fence energiser
500m 2.5mm poly wire
50 Steel post pinlock insulators
Fence connection lead set (fence & earth)



Free delivery within Australia

Next day shipping from Australia to arrive within 5-10 days

IP54 weather proof, however protection from rain is required.  The 240V AC plug must always be protected from all water ingress.

Energiser Specifications

Model Number: EL101
Power supply: 230 volts / 50 Hz (Australian Plug)
Consumption: 0.05A / hour
Voltage output: 7500 volts
Power output at 500 ohms: 1.0 joules
Effective fence length: 10 km
Maximum wire length : 20km

Built to CE safety specifications - IECEE CB scheme certification NO122733
