Electric Fence Energiser 5 Joule 120km 240V AU plug
Electric Fence Energiser 5 Joule 120km 240V AU plug
Electric Fence Energiser 5 Joule 120km 240V AU plug
Electric Fence Energiser 5 Joule 120km 240V AU plug
Electric Fence Energiser 5 Joule 120km 240V AU plug
X Stop

Electric Fence Energiser 5 Joule 120km 240V AU plug

Regular price $144.90 Sale price $189.00 Unit price per
GST included. Free Delivery

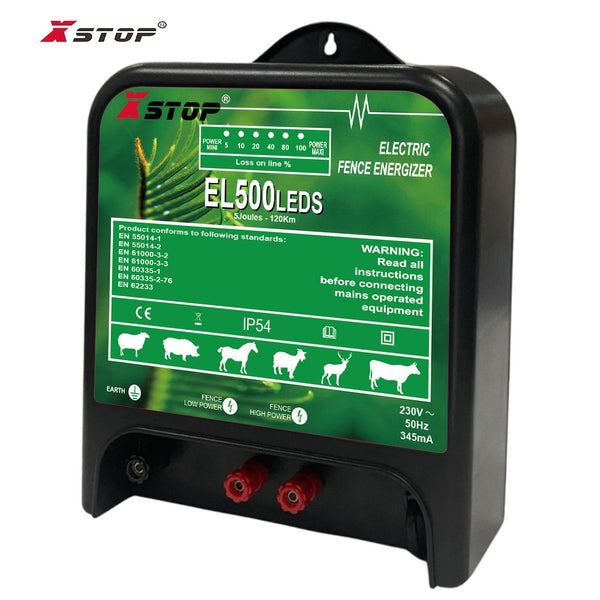

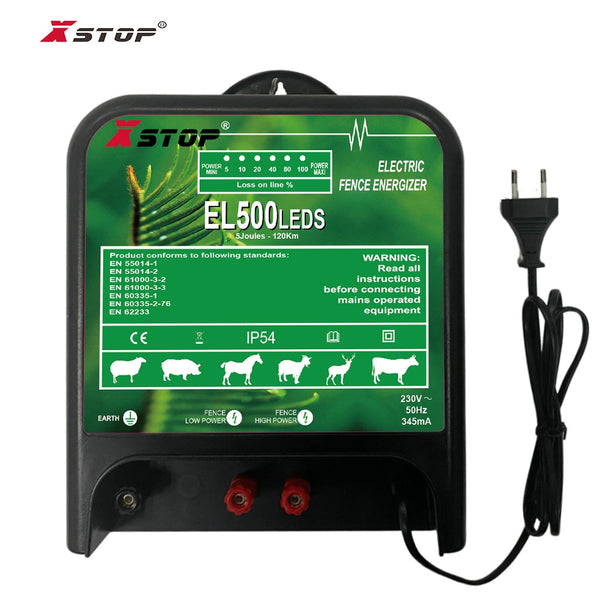

Electric Fence Energiser X-STOP EL500LEDS

Affordable, easy to use, mid sized AC electric fence energiser with a rated output of 7 Joules. Simple and solid construction, suitable for use on small farms and areas up to 200 hectares, this energiser will power up to 50km of multistrand fence (120km max wire length) with a voltage output of up to 9kV.

It features dual voltage output levels to suit your required output voltage. It is a low impedance energiser that can cope with low to moderate levels of vegetation interference without large voltage output drop.

The EL500LEDS has a built in 6 LED display that indicates the level of power in the fence and is a useful indicator of any loss in power that may be occurring due to faults

It is has built in lightning protection, constructed to IP54 weatherproof standard, and is CE compliant and CB test certified.

Features:
Low impedance energizer
Effective fence length of up to 50 km
Maximum wire length 120 km

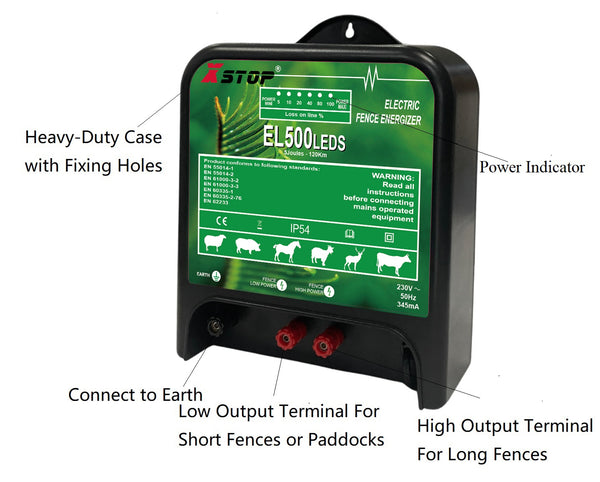

High and Low output terminal option
LED output loss display
Built-in Lightning Protection
Weather Resistant / dust proof
Multiple mounting options, heavy-duty case with fixing holes
1 year warranty (not applicable for lightning strike)

Free delivery within Australia

Next day shipping from Australia to arrive within 5-10 days

Note: This energiser is mains powered (240V) and must be mounted in a sheltered area and protected from rain and water ingress

Specifications:
Power supply:  240 volts 50Hz (Australian plug)
Consumption:  0.345 A / hour
Voltage Output: 9000 volts
Delivered power vacuum: 5.5 joules
Power output at 500 ohms: 4.1 joules
Effective fence length of up to 50 km
Maximum wire length 120 km
Plastic case dimensions: 220x100x275 mm
Weight: 3 kg
CE & RoHS certified IP54 weatherproof and dustproof

IECEE CB scheme certification NO122733
