Electric Fence Energiser 1 Joule 20km 240V AU Plug

Regular price $73.90 Sale price $96.90 Unit price per
GST included. Free Delivery

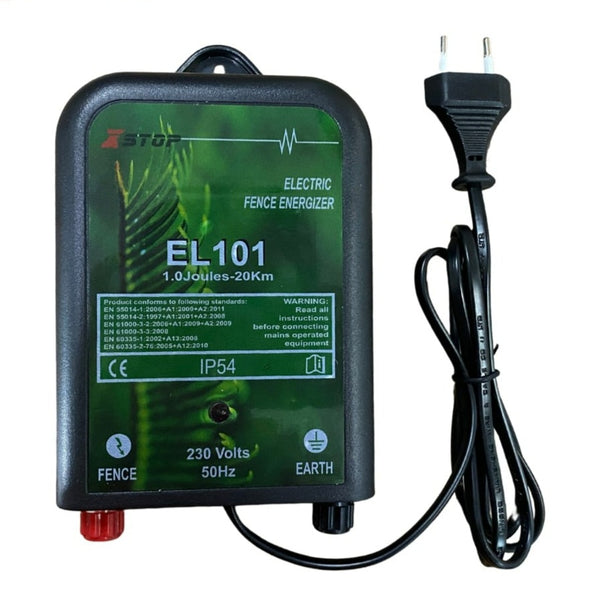

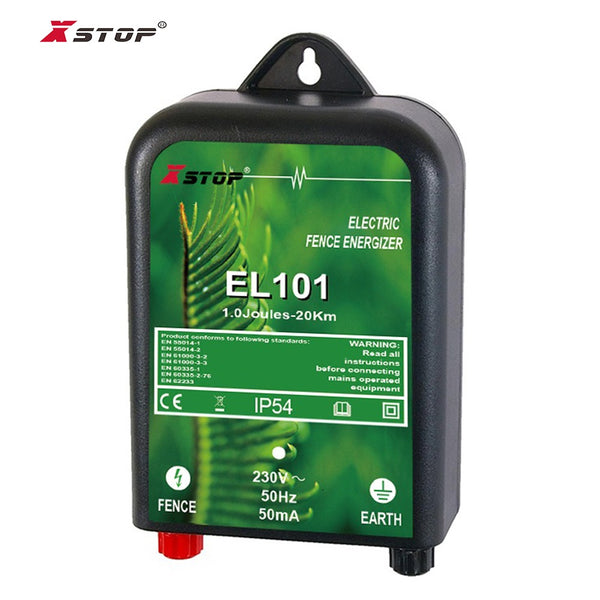

The X-Stop EL101 is a portable electric fence energiser that powered by 240V AC mains supply.

It provides 1 joule output at 7.5 kV and can power up to 10km of multiwire fence (20km maximum wire length). It is small, lightweight and easy to set up, and suitable for cattle, sheep, horse and other livestock permanent and temporary fencing.

It is IP54 rated weatherproof and dustproof and CE and RoHS certified.

Package contents:

1 x EL101 energiser fitted with 240V AC lead with AU plug

Wire to connect from energiser terminals to fence is not included (connecting wires with alligator clips can be supplied)

Starter packages also available containing energiser, polywire, pinlock insulators and leads. (see collection page)

Free delivery within Australia

Next day shipping from Australia to arrive within 5-10 days

IP54 weather proof, however protection from rain is required.  The 240V AC plug must always be protected from all water ingress.

12 month manufacturers warranty (excluding lightning strike)

Specifications

Model Number: EL101
Power supply: 230 volts / 50 Hz (Australian Plug)
Consumption: 0.05A / hour
Voltage output: 7500 volts
Power output at 500 ohms: 1.0 joules
Effective fence length: 10 km
Maximum wire length : 20km

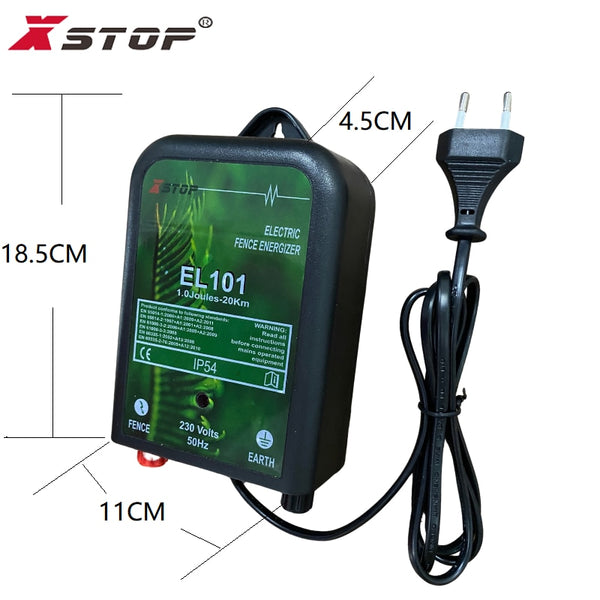

Dimensions: 180x110x45 mm
Weight: 700 g

Built to CE safety specifications - IECEE CB scheme certification NO122733
