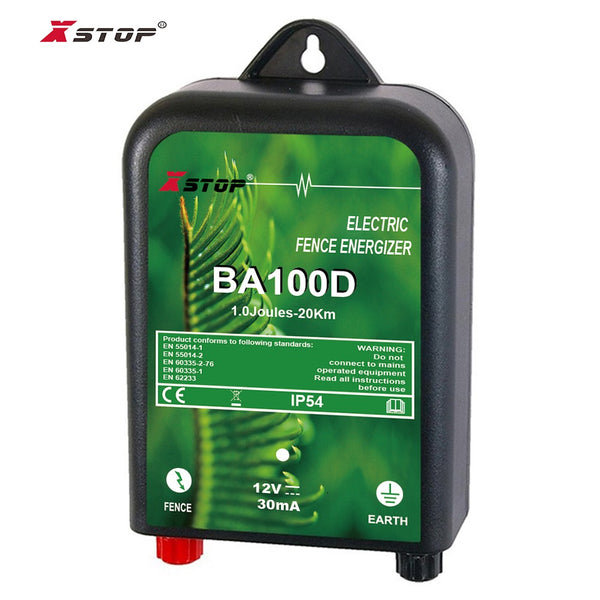

Electric Fence Energizer Dual Power 1 Joule 10km 12V DC

The X-Stop BA100D is a portable electric fence energiser that can be connected directly to a 12V battery with the 12V DC battery clips supplied. It also comes with a 240V AC adaptor for the option of connecting to a 240V mains supply.

It provides 1 joule output at 7.5 kV and can power up to 10km of multi-wire fence. It is small, lightweight and easy to set up, and suitable for cattle, sheep, horses and other livestock permanent and temporary fencing.

It is IP54 rated weatherproof and dustproof and CE & RoHS certified.

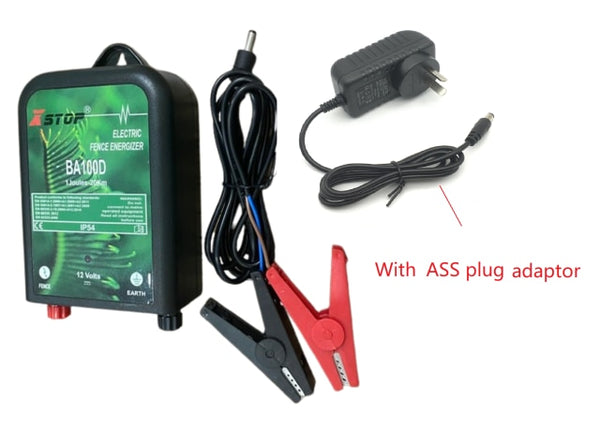

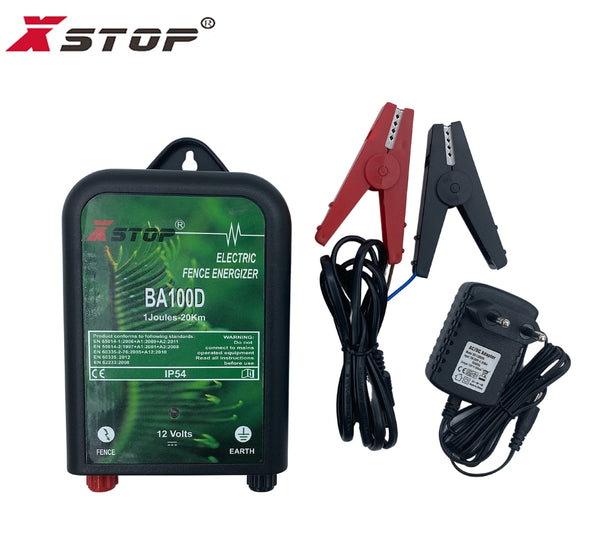

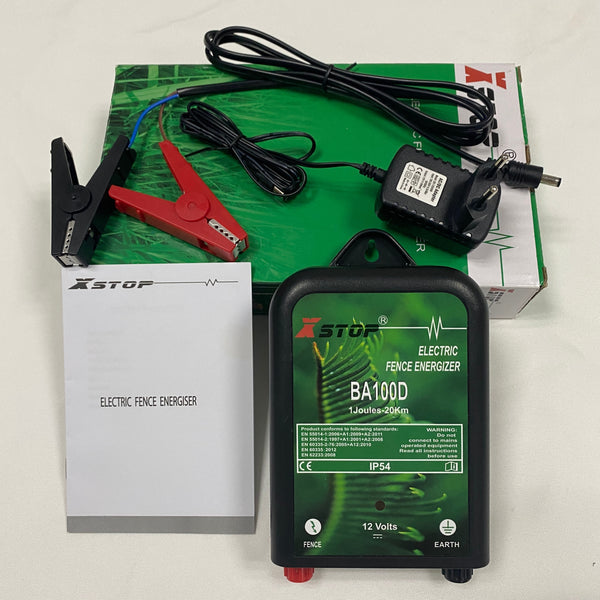

Package contents:

1x BA100D energiser

1 set 12V battery connection leads with alligator clips

1 x 240V AC adaptor (AU plug)

Wire to connect from energiser terminals to fence is not included (connecting leads with alligator clips can be added at checkout)

Options available at Checkout

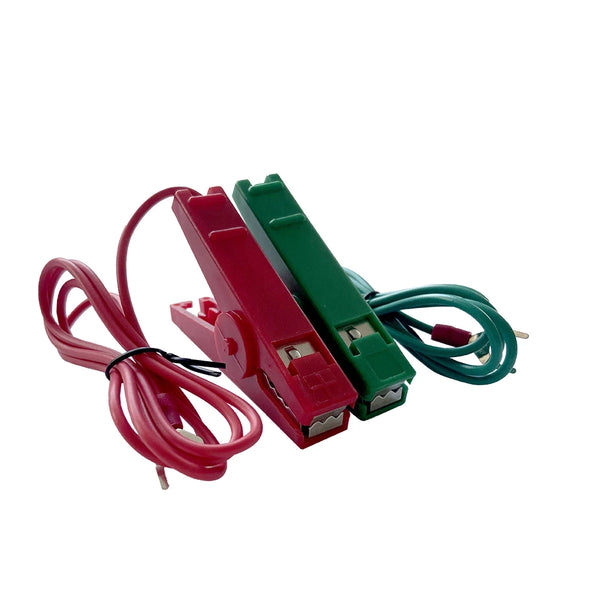

Fence and Earth connecting leads with alligator clips

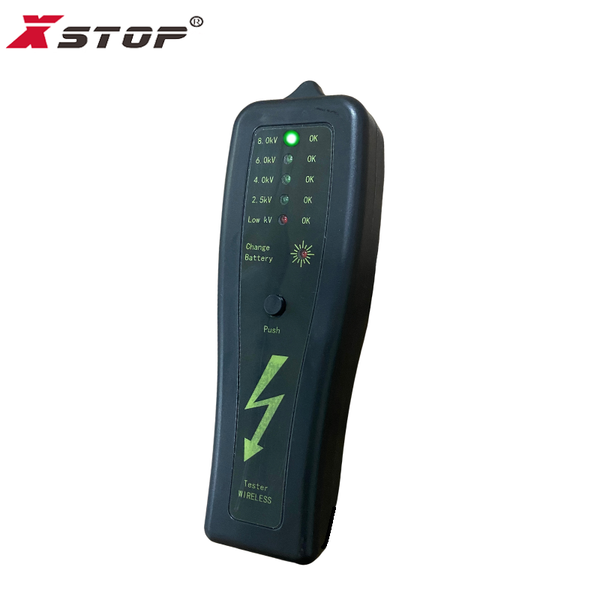

8Kv LED wireless electric fence tester

5 Watt solar panel for charging 12V battery with leads and alligator clips to connect to battery

Battery not included

Free delivery within Australia

Next day shipping from Australia to arrive within 5-10 days

IP54 weatherproof, however protection from direct rainfall is always required.  When connected to 240V AC the adaptor and plug must be protected from all water ingress.

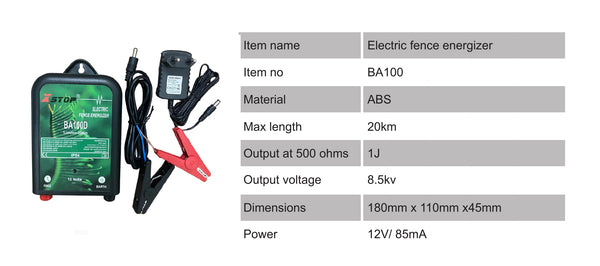

Specifications for Energiser

Model Number: BA100D
Power supply: 12 volts / 85mA
Consumption: 0.060A / hour
Output Vacuum: 7500 volts
Delivered power vacuum: 1.6 joules
Power output at 500 ohms: 1.0 joules
Effective fence length: 10 km
Maximum wire length : 20km

Dimensions: 180mm x 110mm x 45 mm
Weight: 600 g

Built to CE safety specifications - IECEE CB scheme certification NO122733

Specification for Solar Panel

Model Number: KT70714
Power supply: 5 Watts
Max Power Voltage: 18.0V
Max Power Current: 0.28A
Rated Voltage: 12V
Dimensions 290mm x 160mm

Can be used unregulated without a solar power controller
Easy direct connection to battery with supplied leads with alligator clips
Ideal for trickle charging a small 12V lead-acid battery
